A Workflow Engine with a Built-in Process Designer

Finally, the exciting version 1.3.0 is here! No more烦恼 (hassles) with integrating a designer. Follow the first four points below to quickly integrate it into your business system. Here’s how to use the designer:

1. Add Dependency

<dependency>
    <groupId>io.github.minliuhua</groupId>
    <artifactId>warm-flow-plugin-ui-sb-web</artifactId>
    <version>1.3.0</version>
</dependency>

2. Backend Path Permissions

  1. These two paths need to be permitted, otherwise access will be denied: /warm-flow-ui/**, /warm-flow/**
  2. The following is an example configuration for Spring Security:
@Bean
protected SecurityFilterChain filterChain(HttpSecurity httpSecurity) throws Exception
{
    return httpSecurity
            .......
            // Annotate URLs allowed for anonymous access
            .authorizeHttpRequests((requests) -> {
                // Backend requests, static resources, accessible anonymously
                requests.antMatchers("/warm-flow-ui/**", "/warm-flow/**").permitAll()
                        // All requests other than the above require authentication
                        .anyRequest().authenticated();
            })
            ......
            .build();
}

3. Frontend Loads the Designer

  1. The designer page entry address is: /warm-flow-ui/${definitionId}?disabled=${disabled}
  2. The general idea is to proxy the frontend interface (e.g., port 80) to the backend interface (e.g., port 8080) to access this address; everything else remains the same.
  3. Alternatively, access this address directly through the backend interface, which might require handling CORS issues.
  4. The following is an Nginx proxy example:
server {
    listen       80;
    server_name  localhost;

    location /warm-flow-ui/ {
        proxy_pass http://localhost:8080/warm-flow-ui/;
    }
}

4. Integrate Handler Permission Data for the Designer

[!IMPORTANT] Implement an interface to provide the designer with data on which users have permissions to handle tasks set on task nodes.

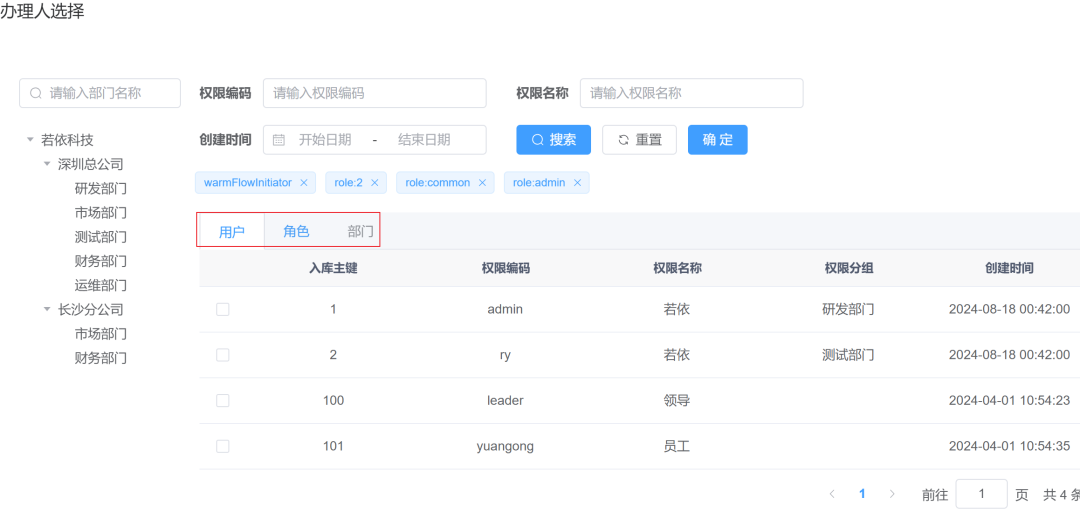

4.1 Handler Permission Selection Modal

4.2 Implement the Interface to Fetch Handler Permission Data for the Above Page

4.2.1 HandlerSelectService Interface

/**
 * Process Designer - Interface for obtaining handler permission setting list
 *
 * @author warm
 */
public interface HandlerSelectService {

    /**
     * Get the list of tabs for handler permission settings, e.g., User, Role, Department, etc.
     * @return List of tab names
     */
    List<String> getHandlerType();

    /**
     * Get the result list for handler permission settings, e.g., user list, role list, department list, etc.
     * @param query Query parameters
     * @return Result list
     */
    List<HandlerSelectVo> getHandlerSelect(HandlerQuery query);
}

5. Project Introduction

[!IMPORTANT] Warm-Flow is a domestic (Chinese) workflow engine 🎉. Its characteristics are simplicity, lightweight, feature-completeness, and extensibility. It is a workflow engine that can integrate a designer via JAR inclusion.

  1. Simple and Easy to Use: Only 7 tables, less code, quick to learn and integrate.
  2. Approval Functions: Support for Approve, Return, Arbitrary Jump, Transfer, Terminate, Countersign, Vote Sign, Delegate, Add/Sign, Mutex and Parallel Gateways.
  3. Listeners and Process Variables: Supports four types of listeners to handle different scenarios, flexible and extensible, parameter passing, dynamic permissions.
  4. Flowchart: The workflow engine comes with a flowchart and can be used without integrating a process designer.
  5. Process Designer: Can be quickly integrated into projects via JAR package, reducing tedious code copying and adaptation.
  6. Conditional Expressions: Built-in common and SpEL conditional expressions, and supports custom extensions.
  7. Handler Variable Expressions: Built-in expressions in ${handler} and SpEL formats, meeting different scenarios, flexible and extensible.
  8. ORM Framework Extension: Currently supports MyBatis, Mybatis-Plus, Mybatis-Flex, and Jpa. Support for others will be provided by the community later; easy to extend.
  9. Database Support: Currently supports MySQL, Oracle, and PostgreSQL. Support for other databases or domestic databases will be added later.
  10. Multi-tenancy and Soft Delete: The workflow engine itself maintains implementations for multi-tenancy and soft delete, or you can use the implementation method of the corresponding ORM framework.
  11. Supports both Spring and Solon.
  12. Compatible with Java 8 and Java 17 (theoretically Java 11 should work too).
  13. Official practical project based on Ruoyi-Vue encapsulation provided.

6. Demo Address

  • admin / admin123

Demo: http://www.hhzai.top

7. Official Website

http://warm-flow.cn
