🧨Warm-Flow Spring Festival Edition 1.6.6: Gateway Direct Connection and Flowchart Refactoring, Adds Excellent Ruoyi-Vue-Plus Open-Source Integration Example

• This release primarily addresses gateway direct connection and flowchart refactoring, enabling support for various complex gateway hybrids and multi-gateway direct connections.
• Added an excellent open-source integration example with Ruoyi-Vue-Plus.

Changelog

• [feat] Added JSON format support for import, export, save, etc.: DefService.importIs/importJson/importDef/saveDef/exportJson
• [feat] Added method to retrieve subsequent nodes: NodeService.suffixNodeList
• [feat] Added gateway direct connection and test cases
• [feat] Added completion status color legend in the upper right corner of the flowchart
• [feat] Added flowchart query interface and extension interface ChartService
• [feat] Added synchronization of historical table data to new flowchart metadata
• [feat] Added full SQL Server script
• [update] Marked import, export, and save in XML format as deprecated; please refer to hh-vue for switching to JSON APIs
• [update] FlowFactory renamed to FlowEngine
• [update] Increased field length for target node code and name in history table to 200
• [update] When passing or returning to a parallel gateway, creating multiple tasks now generates only one history record
• [update] When returning or completing a task, other tasks to be deleted do not need history records as the return record already exists, avoiding duplication
• [update] Transfer, delegation, add sign, and reduce sign operations now generate only one history record
• [update] Changed batch save default to 1000 records per batch
• [update] Added overlay mask during process design saving
• [refactor] Adjusted and refactored flowchart rendering
• [refactor] Removed mybatis-flex, easy-query, and jpa extension packages; these are now independent projects maintained by dedicated personnel
• [refactor] Entity class and DAO retrieval switched to reflection to decouple from the orm-core package
• [refactor] Refactored method to get previous nodes: NodeService.previousNodeList
• [fix] Fixed issue where other pending tasks were not deleted during return
• [fix] Fixed issue where returning to a target node before a parallel gateway prevented generating pending tasks
• [fix] Fixed issue where the presence of | in conditional expressions caused incorrect splitting
• [fix] Fixed incorrect judgment of the same line key when drawing flowcharts
• [fix] Fixed issue where end nodes still executed listener creation
• [remove] Removed DefService flowchart API; replaced by chartIns and chartDef in ChartService
• [remove] Removed frontend log printing
• [remove] Removed Oracle and PostgreSQL upgrade scripts; only MySQL upgrade scripts will be provided henceforth. Users must convert other upgrade scripts themselves from the full scripts provided.

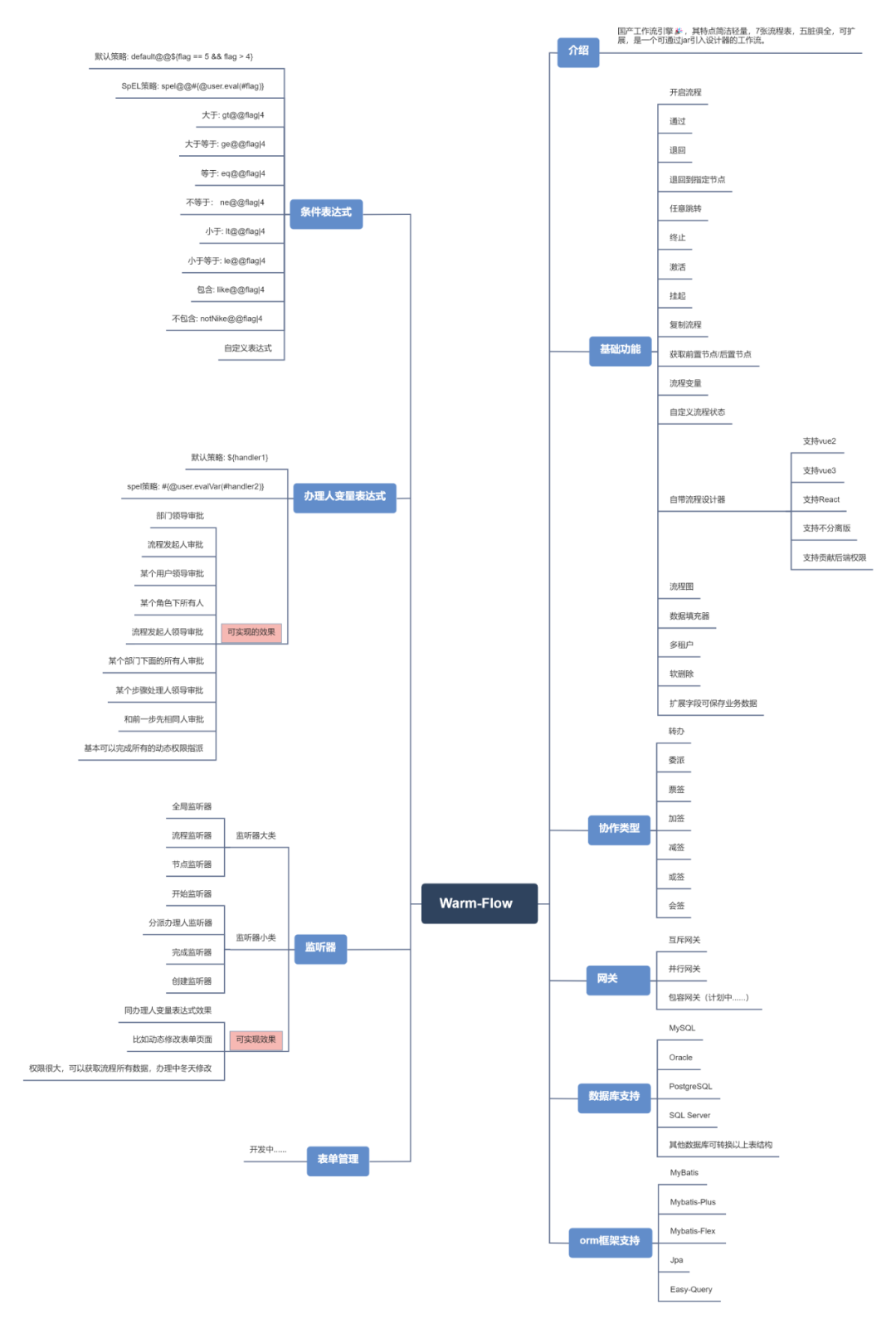

Project Introduction

Dromara Warm-Flow is a domestic workflow engine, characterized by its simplicity, lightweight design, and extensibility. It is a workflow that can integrate a designer via JAR.

1. Supports common approval functions, listeners and process variables, conditional expressions, assignee variable expressions.
2. Built-in flowchart and process designer.
3. Rich and extensible ecosystem.
4. Comprehensive documentation.

Demo Address

• admin/admin123

Demo: http://www.hhzai.top

Official Website

https://warm-flow.dromara.org/

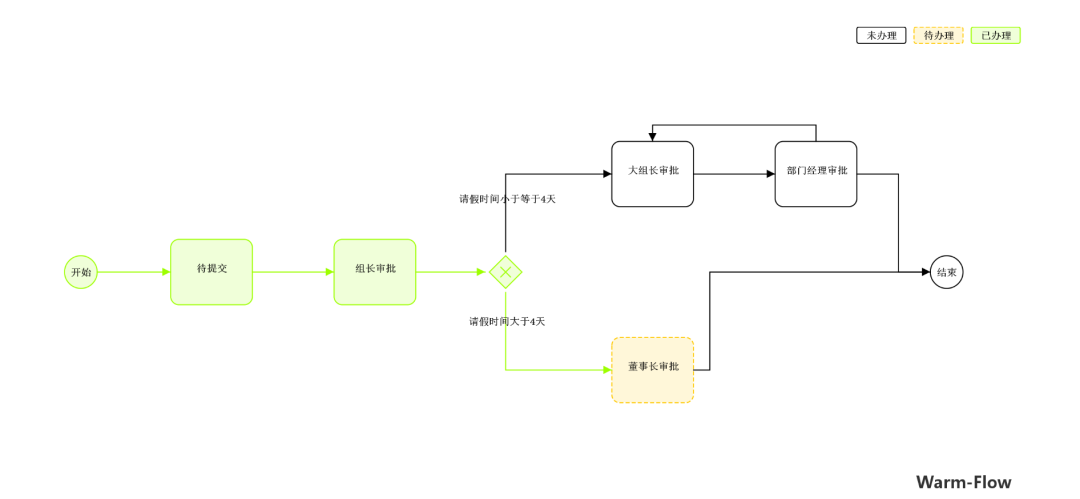

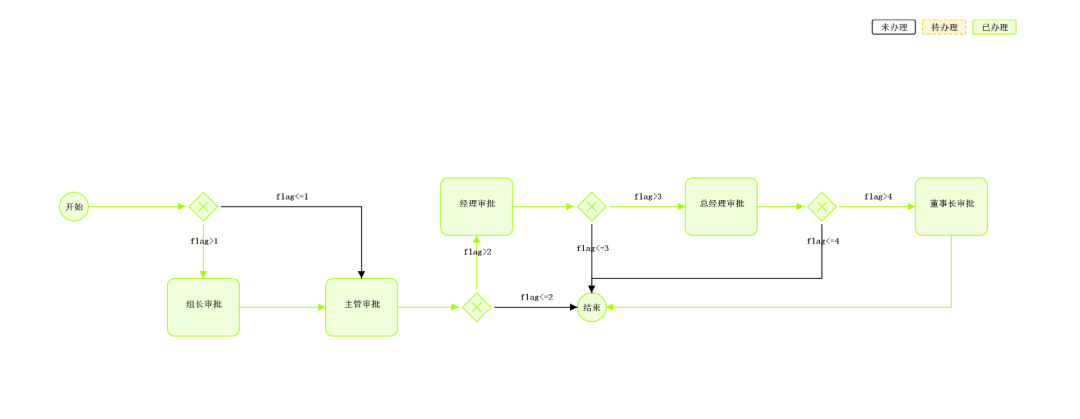

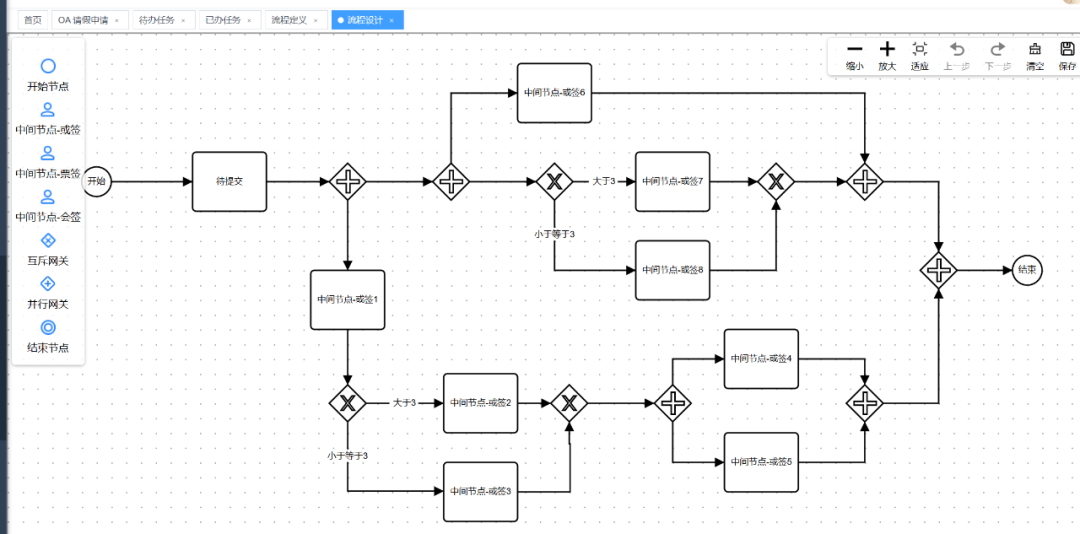

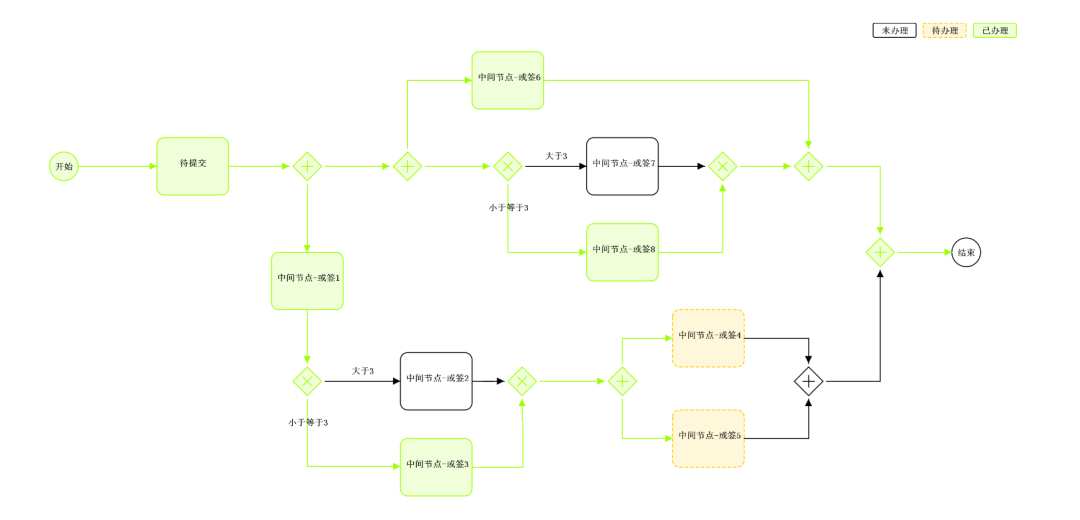

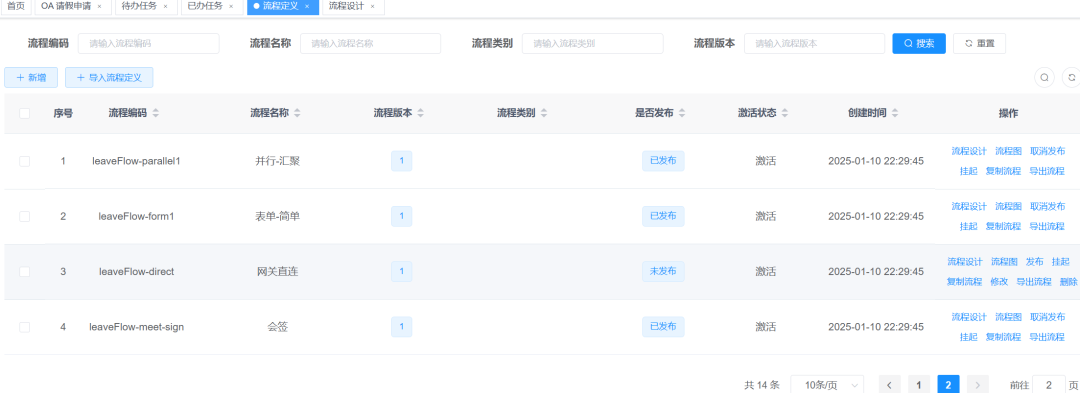

Demo Images
